Compressed Air Leak Energy Cost Calculator
Introduction: What This Compressed Air Leak Calculator Estimates
Compressed-air systems quietly drain money when a leak keeps a compressor loaded, cycles it more often, or forces the plant to maintain pressure that never reaches production. Because the air has already been compressed, dried, and distributed by the time the leak shows up, even a small hiss can become a steady electrical expense when the system runs for thousands of hours a year.

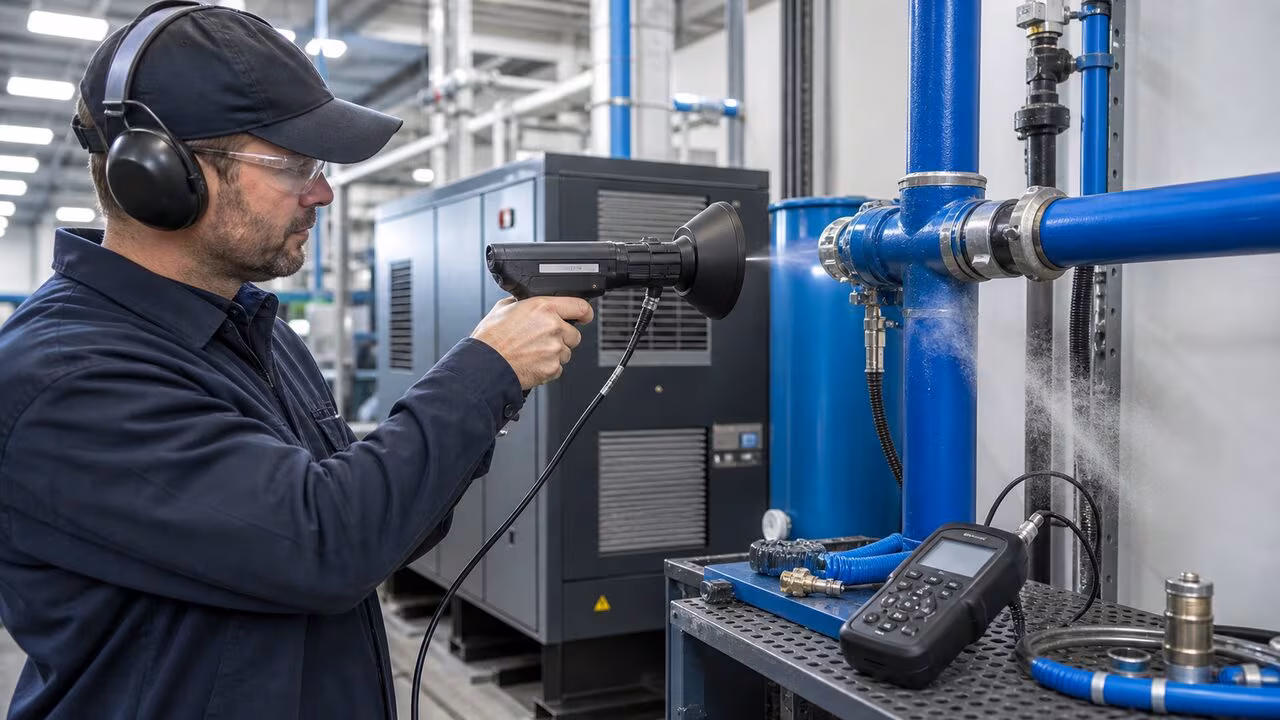

This calculator turns a measured or estimated leak flow into three planning numbers: wasted compressor power, annual wasted energy, and annual electricity cost. If you enter a repair estimate, it also shows a simple payback period so maintenance teams can compare a nuisance leak against a high-value repair found during an ultrasonic survey or routine walkthrough.
How to Use the Compressed Air Leak Energy Cost Calculator
Use the compressed-air leak energy cost calculator by entering the compressor's electrical load, the compressor's rated flow, and your best estimate of leak flow. The result is most useful when the inputs reflect the same operating pressure and the same compressor that actually carries the extra load.
- Enter the compressor input power in kW. Use measured electrical input, not motor shaft output, whenever you have a meter reading.
- Enter the rated compressor flow in cfm at the pressure where the leak exists. If the system has several machines, choose the unit that actually trims or stages to meet the load.
- Enter the leak flow in cfm from an ultrasonic detector, leak tag, or estimating chart.
- Enter annual operating hours. Use the hours the header stays pressurized or the hours the compressor stays loaded, not just machine run time.
- Enter the blended electricity rate in dollars per kWh, including demand and delivery charges if your facility uses them.
- Optionally enter the expected repair cost so the calculator can estimate simple payback.
Because compressed-air leak estimates are uncertain, it is smart to rerun the calculator with a lower and higher cfm if the leak was only tagged by ear or by a rough survey. The table later on shows how much the annual waste shifts when the leak fraction changes.
Choosing good compressed-air leak inputs
Good compressed-air leak cost estimates depend on matching the inputs to the air system you are actually studying.
Compressor power should represent electrical input, not only motor shaft output. For a fixed-speed unit, loaded kW is a better choice than nameplate horsepower. For a variable-speed system, this simple model is most useful near the operating range where additional cfm increases input kW in a roughly steady way.
Rated flow should match the compressor and pressure range that supplies the leak. If several compressors run together, use the incremental compressor that responds to the leak load rather than the total installed plant capacity.
Leak flow is usually the least certain input. Ultrasonic instruments, bag tests, or calibrated orifice tables can all help, but note the pressure used for the estimate. A leak estimated at 100 psig will not waste the same flow at 80 psig, and a leak tagged during a quiet shutdown can grow very differently when the header is fully pressurized.
Operating hours should reflect pressurized hours. A leak on a header that stays charged all weekend can have a much larger annual cost than a leak on a machine drop that is isolated after each shift, even if the two leaks sound equally loud in a walkthrough.
Repair cost should include the full cost of fixing the leak, not just the price of a fitting or a length of hose. Labor, access equipment, lockout, replacement parts, and any planned downtime can all change the payback calculation, especially when the leak is buried in a hard-to-reach branch line.
Compressed-air leak formulas used by this calculator
This compressed-air leak model treats the leak as a share of rated compressor flow and uses that share to apportion compressor kW.
Plain-text formula: leakFraction = leakFlowCfm / ratedCompressorFlowCfm
Plain-text formula: wastedPowerKw = compressorPowerKw * leakFraction
Plain-text formula: annualWastedKwh = wastedPowerKw * operatingHoursPerYear
Plain-text formula: annualCost = annualWastedKwh * electricityRatePerKwh
Plain-text formula: simplePaybackMonths = repairCost / annualCost * 12, when annualCost is greater than zero.
That is why the calculator is handy during a survey: you only need one leak flow, one compressor rating, and one electricity rate to get a quick cost screen. The tradeoff is that the result is an approximation, especially if the air system is modulating, staging several compressors, or running with unusually large storage.
Worked example: a 25 cfm leak on a 50 kW compressor
For the compressed-air leak example below, the calculator uses a 50 kW compressor rated at 250 cfm, with a 25 cfm leak running 4,000 hours per year at $0.12/kWh.
- Compressor power (kW): 50
- Rated compressor flow (cfm): 250
- Leak flow (cfm): 25
- Operating hours per year: 4000
- Electricity rate ($/kWh): 0.12
The leak fraction is 25 / 250 = 0.10, or 10% of the rated flow. That means 5.00 kW of compressor input is effectively tied to the leak. Over 4,000 hours, the calculator estimates 20,000 kWh of wasted energy. At $0.12/kWh, annual cost comes out to $2,400.
If your own result looks very different, first check unit consistency. The most common mistakes are entering horsepower instead of kW, using l/s instead of cfm, or mixing annual hours with weekly or monthly operating time.
Comparison table: compressed-air leak sensitivity by leak fraction
The table below keeps the same 50 kW compressor, 4,000 annual hours, and $0.12/kWh electricity rate while changing only the leak fraction so you can see how quickly compressed-air waste scales.
| Scenario | Leak fraction | Annual wasted energy | Annual cost | Interpretation |
|---|---|---|---|---|
| Small leak | 5% | 10,000 kWh | $1,200 | Still worth repairing if the leak is on an always-pressurized header or can be fixed without a shutdown. |
| Baseline | 10% | 20,000 kWh | $2,400 | This matches the worked example above and gives you a useful middle reference point. |
| Large leak | 20% | 40,000 kWh | $4,800 | Large enough to affect pressure stability, compressor staging, and sometimes dryer loading. |
Use the result panel alongside these scenario rows to see how sensitive the annual cost is when your cfm estimate is a little low or a little high. If a change of only a few cfm moves the cost a lot, it is worth confirming the leak before scheduling the repair.
How to interpret the compressed-air leak result
The result panel breaks the leak into load fraction, wasted kW, annual kWh, annual cost, and simple payback. For compressed-air leak costing, the annual cost is usually the number that gets attention, but the load fraction is what tells you whether the leak is likely to disturb pressure control or compressor staging.
When two leaks have similar annual cost, repair the one that is easiest to isolate, easiest to access, or most likely to be fixed during the next outage. A small but persistent leak on a header that stays charged all weekend can be a better target than a larger leak that disappears whenever the line is shut off.
Limitations and assumptions for compressed-air leak costing
This compressed-air leak calculator is a screening tool, not a plant-wide compressor audit. It is designed to help you rank leaks and estimate order-of-magnitude savings, but several real-world details can push the actual energy impact above or below the simple result.
- Part-load controls: inlet modulation, load/unload sequencing, storage tanks, and variable-speed drives can make the kW penalty for each leaked cfm differ from the simple linear estimate.
- Pressure dependence: because leak flow rises and falls with pressure, a leak measured at one header pressure may cost more or less if the plant normally runs at a different setpoint.
- Shared compressors: if several compressors share the load, the leak should be tied to the machine that actually trims or stages on and off, not to the sum of all installed nameplate capacity.
- Air treatment load: dryers, filters, drains, and cooling equipment may also consume energy or maintenance time, but this calculator only values the compressor electricity tied to the leak.
- Repair practicality: replacement fittings, lockout, and downtime coordination can make a leak's real project schedule longer than its energy payback suggests.
Use the output to decide which leaks deserve measurement, repair, or an audit. For high-dollar opportunities, confirm the estimate with compressor trends, pressure readings, and the exact repair scope before entering savings into a formal project.
Frequently Asked Questions about Compressed-Air Leak Energy Costs
The questions below focus on the compressor leak calculations, the assumptions behind them, and how to turn the result into a repair decision.
How does the compressed-air leak calculation work?
The calculator estimates leak load as leak cfm divided by rated compressor cfm, then multiplies that fraction by compressor kW, annual hours, and electricity rate to estimate wasted kWh and cost. If you enter a repair cost, it also estimates simple payback in months.
How should I use the result to prioritize leaks?
Use annual cost and simple payback to rank leak repairs. In a compressed-air survey, the best candidates are usually the leaks with high annual waste, short payback, and easy access, especially if they sit on headers that stay pressurized after the shift ends.
What if the leak flow is larger than rated compressor flow?
That warning usually means something in the setup needs a second look. Check the units, confirm that the leak estimate belongs to a single compressor or incremental load, and make sure several leaks were not bundled into one cfm figure.
Is this a full compressor-system audit?
No. It is a fast screening estimate for leak energy cost. Real systems can unload, stage, cycle, or trim with variable-speed controls, so a formal audit is still the right tool before you claim project savings.
